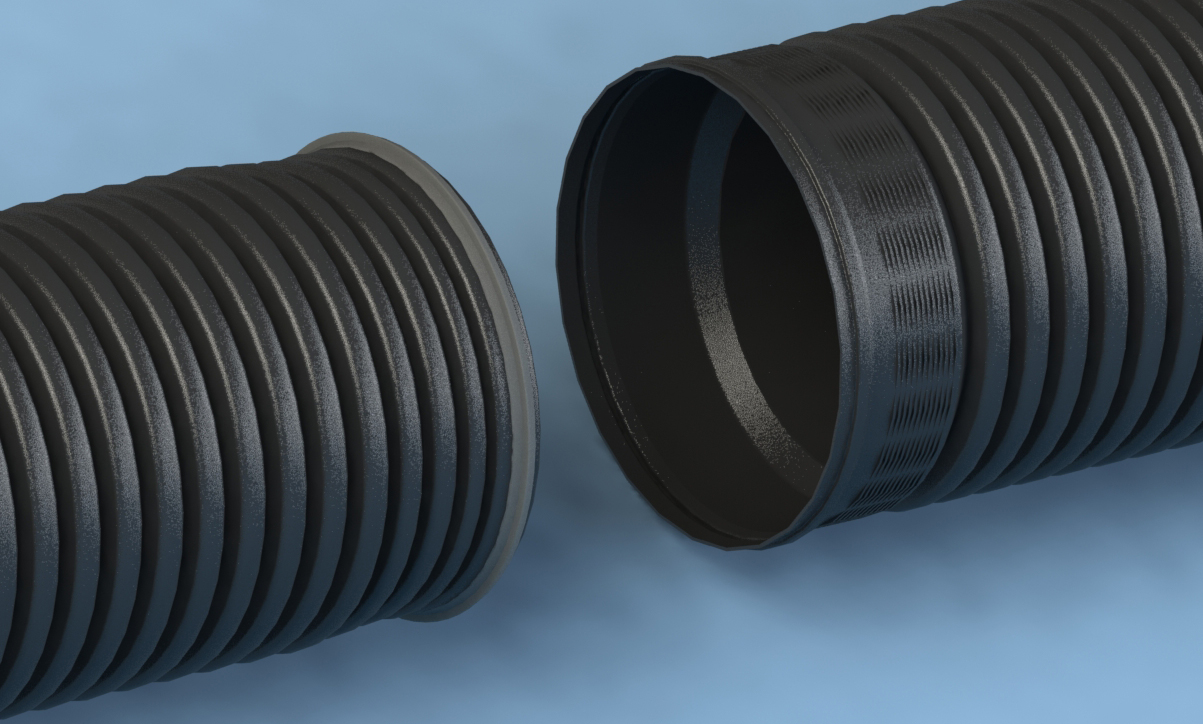

Bell-and-spigot joint provides quick and simple installation with improved watertightness

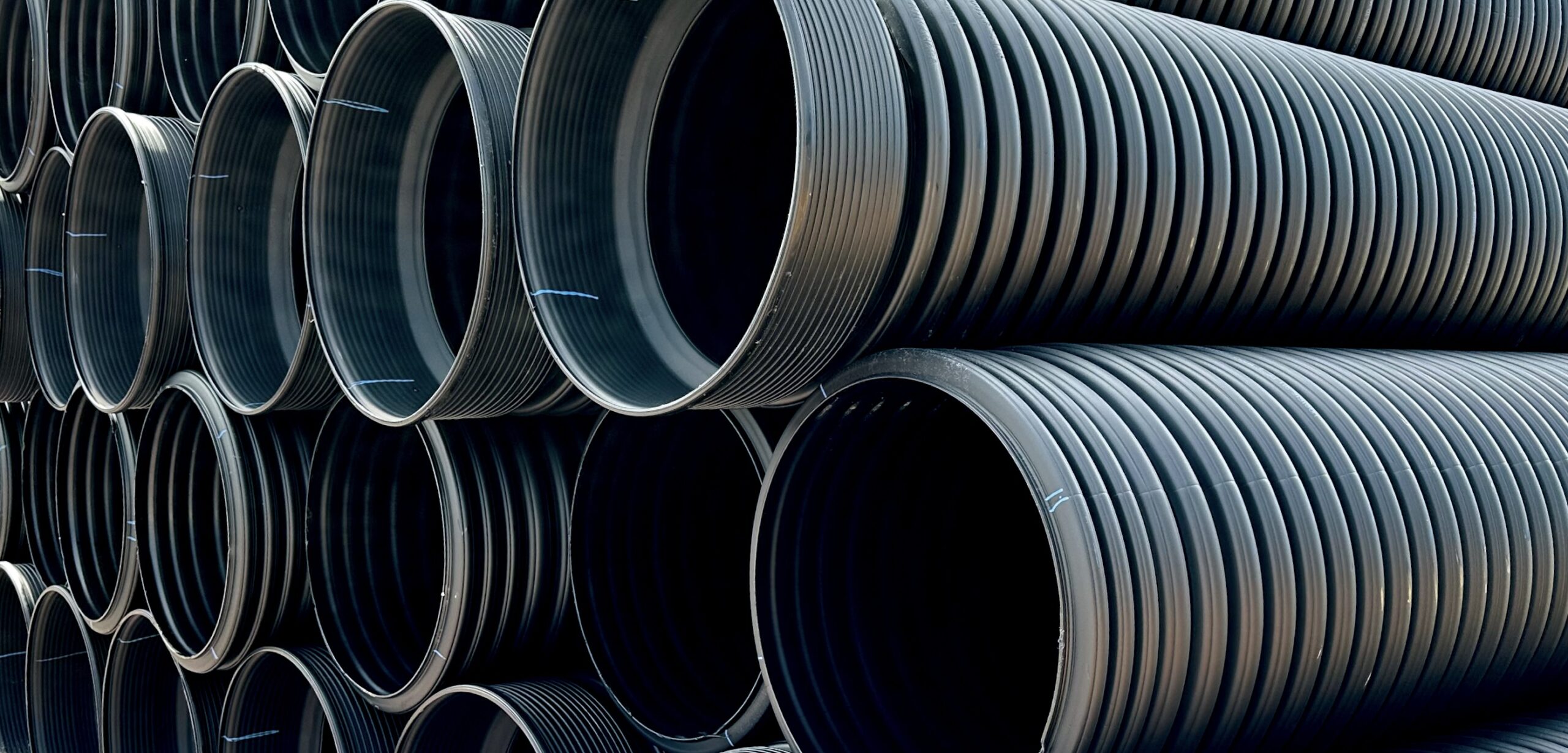

Hi-Flo HDPE Duo Tite pipe from AIL is a corrugated double wall pipe that offers the win-win combination of a secure bell-and-spigot connection with a smooth inner wall for optimum hydraulic flow.
Fabricated from High Density Polyethylene, Hi-Flo HDPE Duo Tite is ideal for storm sewer and drainage pipe applications and is available in diameters from 100 mm – 900 mm (4″ – 36″). It is available in both 210 kPa and 320 kPa stiffnesses and is designed to meet the needs of highway, municipal, forestry and resource road projects.
Hi-Flo HDPE Duo Tite – Bell End Double Wall Pipe is now available in Central and Eastern Canada

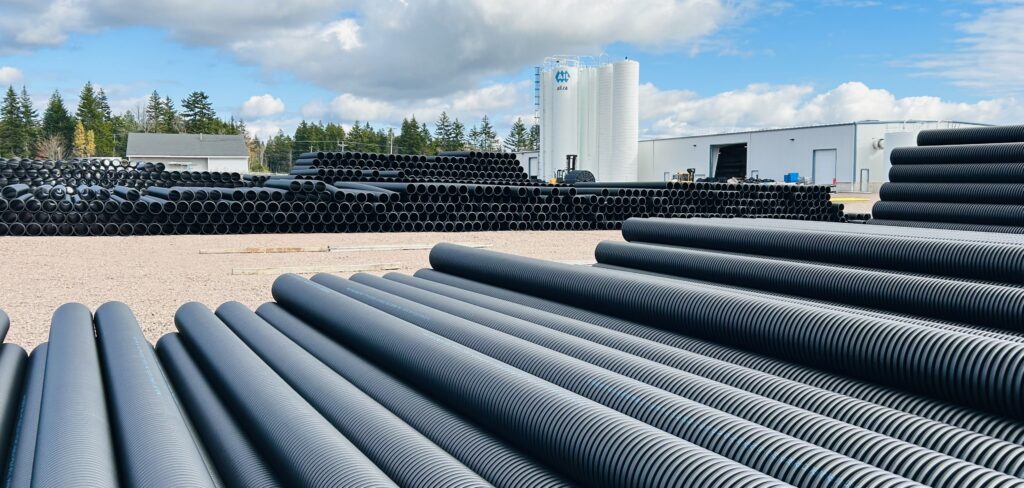

Hi-Flo HDPE Pipe is manufactured from AIL’s new facility to serve the drainage requirements of Ontario, Quebec and Atlantic Canada.

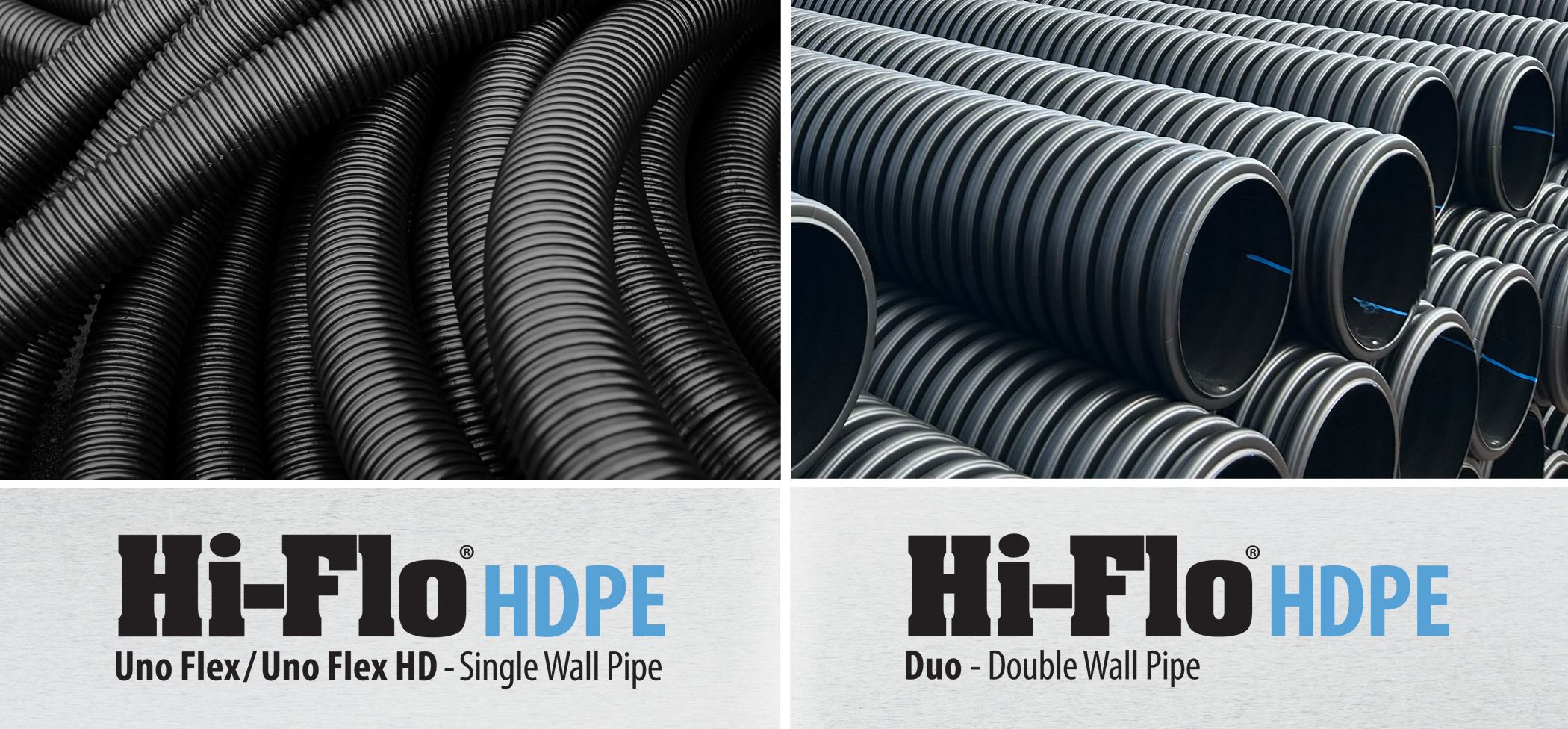

Also available:
AIL’s Hi-Flo Uno Flex / Uno Flex HD – Single Wall Pipe
AIL’s Hi-Flo HDPE Duo – Double Wall Pipe
-
Hi-Flo HDPE Duo Tite - Bell End Double Wall Pipe Product Sheet
Get general information, features and benefits for this double wall bell-and-spigot end HDPE pipe with a smooth inner wall for optimum hydraulic flow.
Download(911.51 KB)
-
Hi-Flo HDPE Duo Tite - Bell End Double Wall Pipe Technical Sheet
Get more detailed information on pipe requirements, material properties, dimensions, product configurations, joint performance and installation details.
Download(252.18 KB)
