Buried Bridge Design Ideas Gallery

Get the inside out on aesthetic treatments for today’s structural plate bridges and tunnels.

AIL’s buried metal bridges and tunnels offer many opportunities to bring enhanced aesthetics to your projects inside and out. From interior finishes and lighting, to exterior end treatments and even urban greenways over top, take a look at what’s available in our design aesthetics toolbox.

Urban greenways — bridge creates a park

Adding green space is a common goal of today’s progressive urban planners. Buried bridges have a natural advantage over traditional span bridges in that they can be used to create very wide continuums of green space. With your vision and a little imagination from our designers and engineers, we can bring your green space ideas to life.



Interior finishes — a palette of possibility

Our Structural Plate Bridges and Tunnels are usually provided with a Galvanized or Polymer-Coated Finish and left that way for low-maintenance service of up to 100 years. However, they can also be custom-coloured to provide a brighter interior or to create unique artistic installations. With a little inspiration, the sky’s the limit!



Interior lighting and panels — creating experiences

Beyond safety and security, light can invoke feelings of peace, harmony and creativity. With today’s modern LED lighting technologies, light can be used to accentuate a structure’s geometry and create a welcoming and memorable experience for users. Acoustic paneling can transform the interior, break up space, deaden sound and hide utility pipes and electrical conduits.



Headwalls — choose your own ending

One of the most important facets of a Structural Plate Bridge or Tunnel are the Headwalls. With a limitless array of panel sizes, colours and textures, our MSE Precast Panel Walls help every installation make a statement. A custom mural wall could tell your community’s story with a sense of context and place. Other treatments include masonry, architectural blocks, applied natural stone or our MSE wire walls with cobblestone at the face.

Custom Precast Mural Walls
Precast Panel
Cast-in-Place
Architectural Block
Masonry
Natural Stone

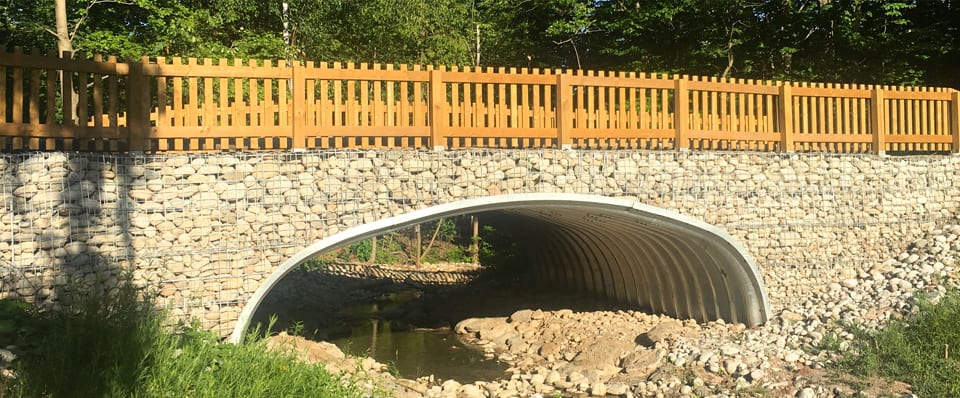

Wire Walls with Natural Stone at the Face
Other Custom Architectural Finishes



Interior halfwalls — extending the headwall look inside

The MSE Precast Panel Headwalls can be extended to the inside with matching concrete halfwalls running the length of the structure. This hybrid design sets the structure on a raised engineered concrete foundation and provides a vertical surface that doesn’t encroach upon pedestrian walkways or bike lanes.



Architectural canopies or extensions — adding a flair

Added elements help create distinctive designs to ease transitions from exterior to interior. They can finish the edges with a flair. Opportunities for legacy projects can add a sense of movement to the more static face of the underpass or tunnel.



Beveled ends — gracefully sweeping curves

If site geometries permit, beveled ends are a very natural way to help a structure be one with the natural contour of the land. Sloped embankments can be left green or finished with natural stone. Any variety of architectural coping or collar treatments can be integrated to accentuate their gracefully sweeping curves.



Natural finishes — part of the green scene

Preserving and enhancing urban green space is important. Consider surrounding one of our Structural Plate Bridges or Tunnels with Green Walls created on battered, wire-faced configurations of our MSE Retaining Wall Systems. Artistically designed living walls are another possibility.



Buried bridges — part of the surrounding landscape

Look around and you will soon see how nicely buried metal bridges can integrate with their surrounding landscapes.

Like this Banff wildlife crossing, flanked by natural boulders.


Or this Calgary proposal with mountain mural, boulders and wild roses.


Or this avalanche protection structure in South Korea.

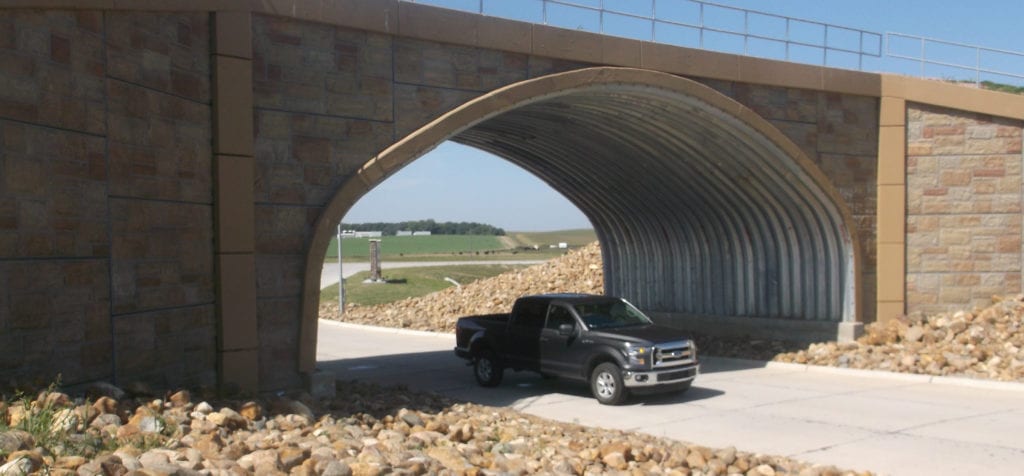

The Precast Panel finish on this Nebraska grade separation echoes the local stone.


The faux brick pattern in this Mississippi structure reflects the historic architecture.


While this one seemed to just create its own environment with natural stone.



We can help you make the most of your next project

Our Technical Sales Representatives, Designers and Engineers are ready to help you make the most of your next buried bridge project. Certainly, we can value-engineer your solution to make sure you are saving time and money, but we can also draw from the many devices in our aesthetics toolbox to make the end results truly notable. Typically, the sooner we get involved, the better the outcome.
