Railway

APPLICATIONS

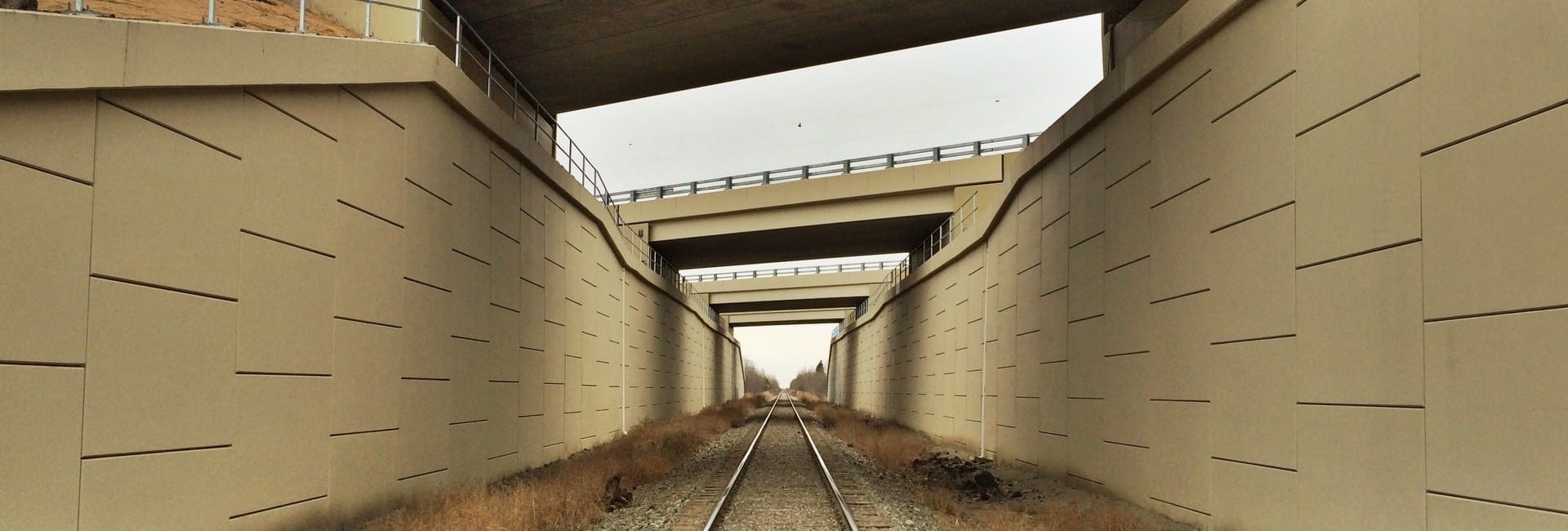

• Abutments and Retaining Walls

  Our MSE Precast Panel Walls or Wire Walls create cost-effective on-site abutments and retaining walls in the railway sector. Bolt-A-Bin, cellular metal bin type walls are another economical option.

• Box Culverts

  Featuring a unique geometry for generous rail or road clearances, Box Culverts are the perfect solution for long-span, low-rise situations with shallow cover requirements in the railway sector.

• Culverts, Fish Passages and Drainage

  We offer a full range of solutions to help stretch the railway or light rail infrastructure budget. Choose from round or pipe arch shapes. Materials include steel, aluminum and smoothwall pipe.

• Grade Separations and Approach Ramps

  Supporting the heaviest railway loads, our Structural Steel Plate, Prefabricated Bridges and Retaining Wall Systems are go-to solutions for today’s busy railway sector needing accelerated design and construction.

• Headwalls and Wingwalls

  Our ability to design and supply buried arch bridges and their headwalls and wingwalls as a packaged solution creates additional opportunities to maximize value in railway sector infrastructure.

• Overpasses and Underpasses

  Choose our deep-corrugated Ultra•Cor and Super•Cor Arches and Box Culverts for larger railway sector applications. Choose Bolt-A-Plate for medium and smaller ones.

• Rehabilitations and Relines

  Our custom-fit reline packages can help salvage older culvert or bridge structures and avoid the cost, traffic interruption and environmental issues of a full replacement.

• Sound Barrier Walls

  With their lighter weight, lower installed costs and long-term durability, AIL Sound Walls are a perfect choice to keep the peace in neighbourhoods along busy railways. They are installed easily on narrow job sites.

• Tunnels

  AIL is a tunnel solutions specialist for the railway sector. Choose from several Structural Plate options, including THE EDGE Four-Flange Structural Liner that let’s you build tunnels entirely from the inside.

• Vehicular and Pedestrian Bridges

  Durable and low-maintenance bridges with spans of up to 122 m can be installed in one day for limited interruption to railway sector traffic.

• Water and Wetland Crossings

  With difficult terrain and sensitive ecosystems, these crossings require extra care and engineering expertise. We can provide many types of solutions in Prefabricated Bridges, Structural Plate and Pipe Systems
